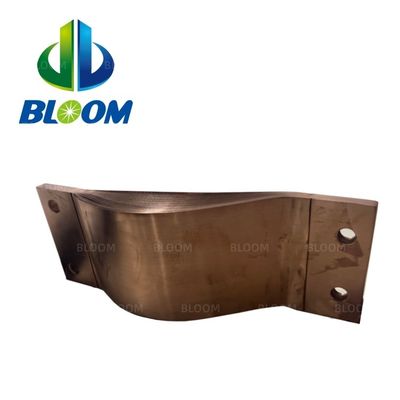

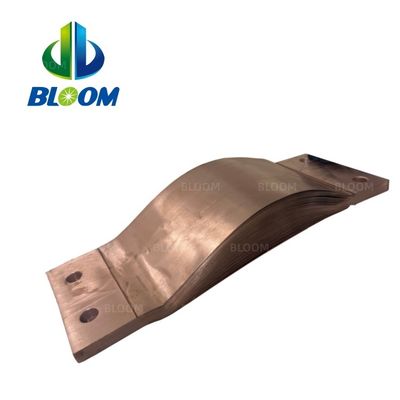

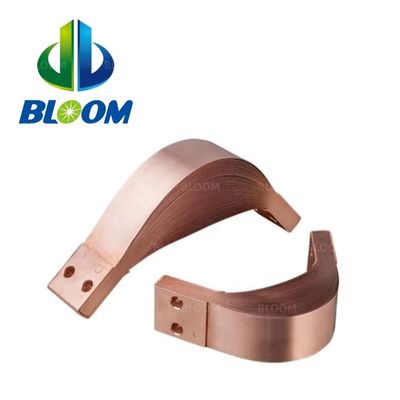

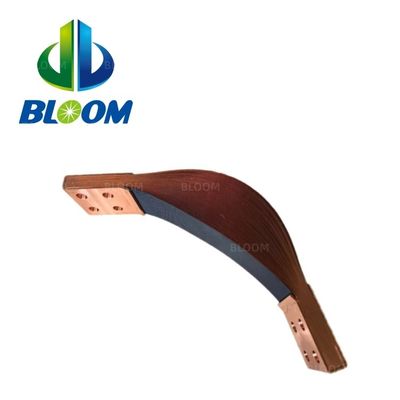

Copper Laminated Flexible Shunts Spot Welding Gun Accessory Parts Durable Copper Soft Connector Custom Laminated Shunt

High-quality custom laminated copper shunts designed for spot welding machines and resistance welding applications. These flexible connectors provide superior conductivity and durability for industrial welding processes.

• Constructed from multiple thin layers of high-conductivity electrolytic copper
• Press-welded at both ends using advanced polymer diffusion welding technology
• Available in various configurations: F-type (straight), L/J-shape, C-shape, V-shape
• Customizable copper foil thickness: 0.1mm, 0.2mm, 0.5mm or to specification
• Contact surface options: Galvanized or silver-plated as required

• For A > 90mm, B > 60mm: Contact surface paste copper (1mm thick) pressure welding process
• For A > 140mm, B > 130mm: Brazing process recommended

When ordering, please specify:

• Shunt type: F (Straight), C (180°), J/L (90°), or V (45°)
• Copper foil/sheet thickness
• Overall shunt thickness
• Shunt width and length
• Hole specifications (diameter, pattern, quantity, location)

• Press-Weld
• Swaged
• Riveted
• Solder Dipped ends
• Copper Clips or Plates

• Resistance and spot welding machines
• Electrolytic processes and plating
• Furnace and induction furnace applications
• ISO-Phase Bus systems
• Plasma equipment
• Switchgear and transformers
• Telecommunication equipment
• Fuel cells and rectifiers

Our laminated copper shunts are precision-engineered to meet your specific machine requirements and welding parameters, ensuring optimal performance and longevity in demanding industrial environments.
